Elevator Car Frame & Structural Safety Systems

BGE Elevator Escalator — Heavy-Duty Steel Assemblies, Progressive Safety Gears & Ultimate Passenger Protection

At BGE Elevator Escalator, safety is our top priority. Our Car Frame & Safety Systems form the core mechanical backbone of the elevator cabin, engineered to support dynamic passenger loads and provide instantaneous braking protection in emergency situations.

Constructed from high-tensile structural steel profiles, our car frames incorporate progressive safety gears, overspeed governor interlocks, oil buffers, and anti-vibration guide shoes. Every assembly undergoes rigorous stress testing to comply with international safety regulations and withstand extreme operating conditions.

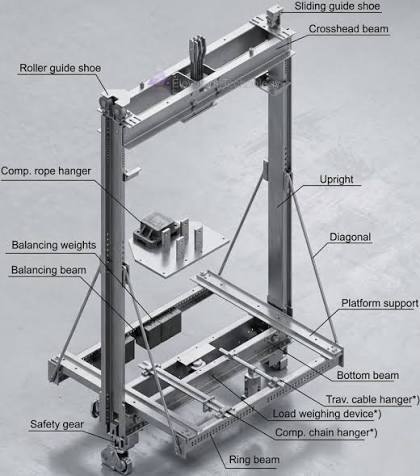

1. High-Tensile Structural Steel Frame

Heavy-duty upright stile channels and crosshead beams designed for high bending resistance and structural stability.

2. Progressive Instantaneous Safety Gear

Mechanical clamp mechanisms that securely grip guide rails to arrest free-fall or overspeed conditions instantly.

3. Overspeed Governor Interlock

Flyweight centrifugal speed sensing system that triggers mechanical safety brakes when rated travel speed is exceeded.

4. Hydraulic & Rubber Pit Buffers

Energy-accumulating and energy-dissipating buffers installed in the pit to safely absorb bottom impact forces.

5. Precision Guide Roller Assemblies

Spring-loaded roller and sliding guide shoes that eliminate cabin sway and ensure silky-smooth shaft travel.

6. Anti-Vibration Isolation Pads

Heavy-duty elastomeric dampening blocks positioned between the cabin sling and platform to absorb motor vibrations.

7. Overload Weighing Sensors

Under-platform load cells and strain gauges that detect cabin capacity limits and prevent motion during overload.

8. Rope Equalizer & Hitch Assemblies

Self-balancing hitch springs and shackles ensuring equal tension distribution across all hoisting steel wire ropes.

9. Strict Standard Certification

Fully compliant with international elevator safety codes (EN81 / IS standards) for structural load integrity.
